Coatings

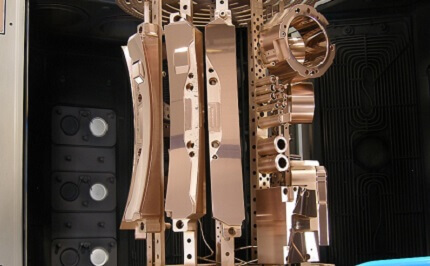

coating machines

BÖHLER Canada is home to a state-of-the-art Physical Vapour Deposition (PVD) coatings centre, equipped with the latest in PVD coating process technology. PVD is a vacuum coating technique, which creates a film on the surface of the required material to maintain its hardness. The film improves part quality, creates higher productivity, and increases tool life. A major benefit of PVD coating is its use of low temperature during the procedure, which avoids distortions in the tool.

BÖHLER’S PVD coatings centre specializes in creating custom coatings for the automotive, die casting, aerospace and plastic injection tooling industries, but is committed to accommodate a wide range of customer needs.

The coating centre works side by side with the BÖHLER steel division and thermal processing division to offer our customers a complete solution – we are able to advise on an application with material selection, heat treatment specifications and coating technology.

At BÖHLER, we are devoted to providing on-time delivery, competitive prices for high performance coatings and exceptional customer service.

For more information about our complete line of products and services, please contact one of our application specialists.

Additional Information

The PVD Coating Centre is located at 2645 Meadowvale Blvd, in Mississauga Ontario.

For sales inquiries, please call (905) 812-1701 or fax (905) 812-9231.

You can also call toll free at (800) 665-8335.

TIGRAL® coating is designed for tools in need of very high resistance against oxidation and abrasion. It is a two stage coating process, composed of a Plasma Nitride and followed by a mono layered matrix coating. This mono-layered matrix composition creates a very ductile film ideal for abrasive environments such as die casting and hot forging. TIGRAL® coating avoids the drawbacks associated with high temperature coatings, but easily matches their performance levels. The low temperature application process allows for the metallurgical characteristics of the steel to be maintained. The unique chemistry of TIGRAL® offers protection from materials that corrosively attack the tool steel, which results in reduced adhesive wear and alloying between work and tool materials, enhancing part release and greater productivity.

Duplex-TIGRAL® Brochure

VARIANTIC® coating is a high performance coating consisting of a specially designed plasma-nitriding process combined with a low temperature nano-layered PVD coating. This nano-layered feature greatly reduces stress and improves ductility, which increases coating longevity by preventing microcracks in the film. VARIANTIC® coating was developed to avoid the distortions and disadvantages associated with high temperature coating processes such as CVD and TD coating, all while providing equivalent results. This coating allows for tools to be easily stripped and re-coated multiple times to maximize tool life without damage to the substrate. VARIANTIC® coating is ideal for high pressure applications where adhesive and abrasive wear of the tool is significantly reduced providing impressive production enhancements.

Duplex-VARIANTIC® Brochure

CROSAL® – PLUS represents the next generation of AlCrN-based hard coatings. The new coating system is an advanced development of our well-established CROSAL® coating. As a result of optimized process parameters and a tailor-made coating microstructure, this versatile high-performance coating covers all key requirements such as high oxidation resistance, excellent hot hardness and outstanding adhesive strength. CROSAL®-plus from voestalpine eifeler is perfectly suited for the challenging areas of dry cutting, as well as the numerous applications for punching and forming, all of which benefit from the enhanced properties profile of CROSAL®-plus.

CROSAL®-Plus Brochure
